High Precision Customized HDMI Shell Progressive Stamping Die: Say Napanmatalkan mon Lapuan parad Agnaparaan a Kalidad tan Balor
Diad mundo na precision metal stamping, lalo la ed saray importantin kabiangan a singa saray HDMI connector, say die so puso na kalidad, inkaparaan, tan inkaepektibo. Bilang sakey a propesyonalmanggagawa na kagawaandiad lapuan, espisyalista kami ed panagdesinyo tan panaggawaHigh Precision Customized Progressive Stamping Diesya mangiter na pakayari ed saray kliyente mi pian nadampot so superyor ya performance na produkto, nabawasan so gastos ed yunit, tan napapeles so panaon ya makasabi ed tindaan.
Natatalosan mi ya say kaukolan na kustomer et aliwa labat ya metal ya casing; saya so manunan interface ya mankaukolan na anggapoy depekton inkasusto na sukat, ekselentin konduktibidad, tan napanmatalkan ya inkadukey. Say misyon mi et say pangipatalos ed saray espisipikon kakaukolanen mo-balanglan manlapud 2D/3D a drowing, sakey a sample, odino sakey a performance spec-ya magmaliw a mabiskeg, atagey-performance ya progressive die ya makapangiter manlapud unonan stroke anggad koma-milyon.
Saray Espesipikasyon tan Sarag na Produkto ed Sakey a Pannengneng
|
Bengatla |
Espesipikasyon / Sarag |
|
Ngaran na Produkto |
High Precision Customized HDMI Shell Progressive Stamping Die |
|
Materyal na Produkto (Strip) |
Tansa (C18070, C2600), Copper Alloy (C7025), Phosphor Bronze (C5191, C5210), Stainless Steel(SUS301, SUS304). Wala ray arum ya alloy no kerewen. |
|
Istruktura na Die |
Modular Progressive Die. Ginawa parad atagey-peles, tuloytuloy ya produksyon ya walaan na dakel ya istasyon parad panag-blank, panagporma, panag-bending, tan pinal a panag-cutoff ed sakey a press stroke. |
|
Saray Manunan Proseso na Panagmakina |
Mapeles ya CNC Milling & Grinding, Wire-Cut EDM (Matantan tan Maples), Jig Grinding, Precision Heat Treatment (Vacuum Quenching, Deep Cryogenic Treatment), Surface Treatments (TiN, TiCN Coating). |
|
Kapasidad na Produksyon na Pabrika |
17 ya dedikadon progresibon stamping press (25T anggad 110T), kaiba lay atagey- ya inkasustoYamada Dobby 30T tan 40Tmakina parad R&D, sampling, tan low-volume high-precision production. Sigpot ya kapasidad parad panaggawa na die, panag-tryout, tan panag-validate na produksyon ed abung. |
|
Say Manunan Aplikasyon |
New Energy Vehicle (NEV) Wiring Harnesses, Aerospace Connectors, Medical Device Components, Industrial Control & Robotics, High-End Consumer Electronics. |
Akin et Pilien so Customized ya HDMI Shell Progressive Dies?
Indesinyo parad Sankatageyan ya Performance tan Andukey na Bilay
Say inkasusto ya manbayag
Saray die tayo et ginawa parad panagsungdo, ya walay apaneknekan yasay bilay na kagawaan et manlapud 10 milyon anggad masulok ya 50 milyon a siklo, depende ed materyal tan inkakomplikado. Saya so direktan mankabaliksan na abeban gastos ed andukey a panaon na produksyon tan nabawasan so panaon na panagmintina na kagawaan.
Superior Materials & Construction
Uusaren mi labat iray premium ya bakal ya kagawaan a singaSKD11, DC53, tan high-speed powder steels (ASP23, ASP60)parad saray importantin kabiangan, ya mangiseguro na nikadkaduman resistensya ed pakasulong tan inkapekder. Say modular ya istruktura mi, ya ginawa edSaray estandarte na Meusburger, Hasco, odino Misumi, mangigarantiya na pansasalat, mas mainomay ya manmintina, tan mas andukey so bilay na serbisyo.
Garantisadon Inkasusto
Say dies mi et adesinyo parad masimpit iran toleransya ya kaukolan na HDMI connectors, tan saray die mi et tuloytuloy ya manggagawa na saray shell ya walaan na inkasusto ya makaabot odino onlampas ed saray estandarte na industriya, ya mangiseguro na perpekton pan-mating tan integridad na signal.
Komprehensibon Panagpasadya tan Co-Serbisyo ed Inhenyeriya
Sikami so kapareha yo, aliwan sakey labat a supplier. Say full-service ya paraan mi et mamaseguro ya say die yo et aka-optimize parad saray espisipikon pankaukolan yo:
DFM & CAE Analysis
Antis ya putoten so antokaman a metal, saray eksperiensyadon inhinyero mi et manggawa na sigpot aDesign for Manufacturability (DFM) reviewinsanCAE simulation analysis. Sayan importantin kundang et mangibaga na saray posiblin isyu a singa say deformation, cracking, odino springback ya masakbay, kanian makatipid na baleg a panaon tan gastos ed panaggawa na prototype tan troubleshooting.
Integrated Process & Strip Layout Design
Say proseso na 3D/2D ya panagdesinyo mi et akasentro ed sankaabiganproseso na panag-sequence tan strip layout. Papaaligwasen mi so pangusar na materyales tan mandesinyo kami na malet tan epektibon iyaaligwas pian naseguro so tuloytuloy ya kalidad tan maples ya produksyon.
Kasumpalan-anggad-Kasumpalan na Panggawa na Proyekto
Manlapud panagtipon na molde tanproduksyon na subokpian eksaktosukat na sukat(ya manguusar na CMM, optical projectors, tan arum ni),panangabobon na sampol, tan sampotsuporta ed dakel a produksyon, say dedikadon grupo mi so mangaasikaso ed kada kundang. Makala kay turnkey ya solusyon ya asikasoen na saray eksperto.

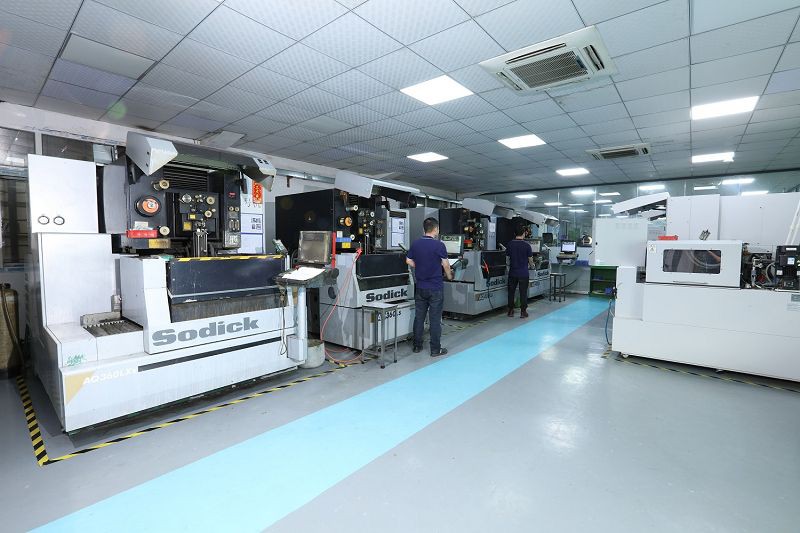

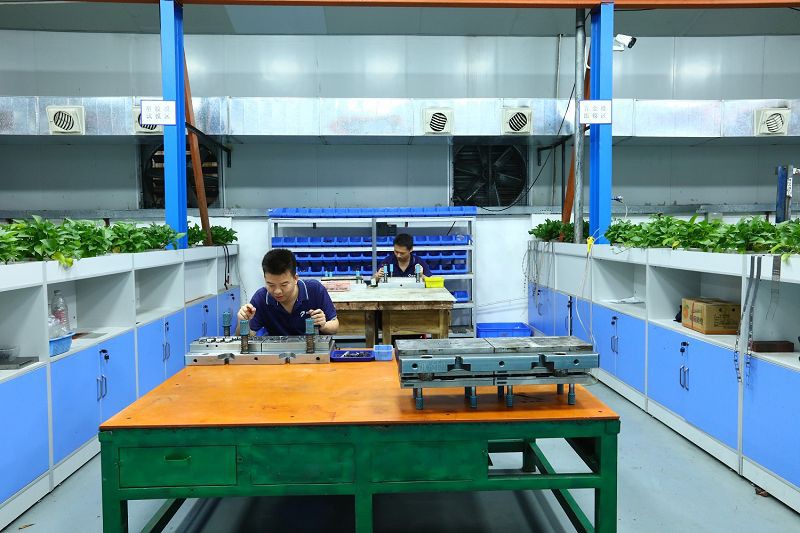

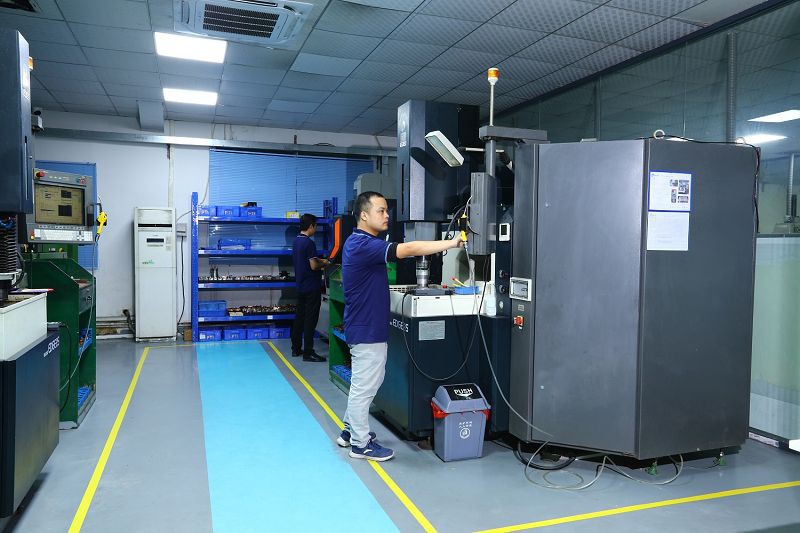

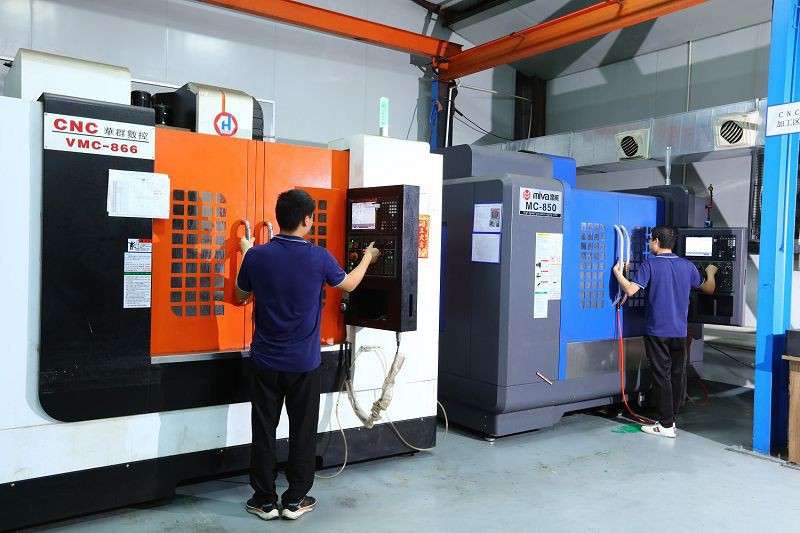

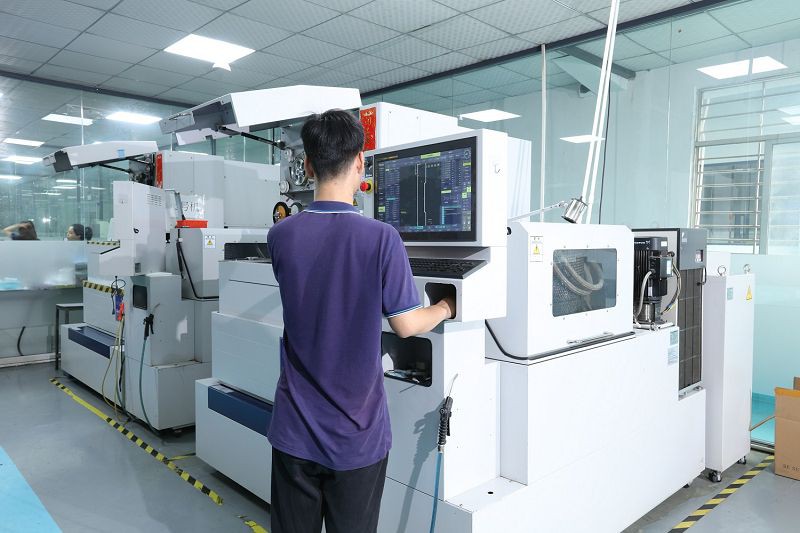

Advanced Tooling Room Display
Bentaha ed Direktan Lapuan: Makapankompetensia ed Presyo tan Sigpot a Kontrol
Bilang sakeypabrika-direktan manggagawa na kagawaan, ekalen mi ray middleman markup. Nagunggonaan ka edbaleg ya natipid ed gastosdiad parehon presyo na kagawaan tan kada parte ya ag-ikompromiso so kalidad. Mantinien mi so transparency ed interon proseso na panag-quote tan panaggawa.
Flexible tan Responsive ya Modelo na Serbisyo
Abeban MOQ tan Prototype Tooling
Susuportaan mi ran duaabeban minimum ya order quantities (MOQ)parad balon proyekto tan opresiprototype/sample moldserbisyo parad R&D tan validation phases.
Agresibon Panaon na Pangulo
Diad pangusar ed saray abilidad mi ed loob na abung tan say epektibon panagkimey mi, mangiiter kamimakompetensia tan napanmatalkan iran lead timeparad panaggawa na die, manlapud pangabobon ed desinyo anggad pangiter na unonan sample.
Eksperton Teknikal a Suporta
Say grupo mi na saray design engineer tan technician et akaparaan ya mangiter na tuloytuloy ya suporta, pian naseguro so maabig ya pangiyapasakey ed linya na produksyon yo.
Say Pangisipan Mi: Kalidad, Kasusto, Pankakasakey
Say sipan mi et aglabat pangiter na sakey a die. Mangiter kami nasolusyon ed panaggawa. Diad pangontrol ed interon proseso manlapud desinyo anggad panag-tryout ed pasilidad mi, naseguro mi ya maletpanangontrol ed kalidaddiad kada yugtan. Saray dies mi et ginawa pian onkiwas ya maong ed saray press room yo, ya makapawala na saray stamping parts ya makaabot ed saray sankaimportantian ya electrical tan mechanical ya detalye.
Nanggawa kami na total quality management (ya walay sertipiko na ISO9001-2015/ISO14001/IATF16949) diad pabrika mi pian naseguro ya anggapoy depekto ya ipawit ed saray kustomer mi.
Balanglan mangilulukas kayo na balon linya na produkto odino manaanap kayo na mas napanmatalkan tan mas epektibo ed gastos a supplier parad saray wala lan kabiangan, walaan kami na kakabatan, teknolohiya, tan biskeg na pabrika pian magmaliw ya sankaabigan ya kapareha yo.
Saray Aplikasyon ed Industriya
Aplikasyon: Customized solution parad kliyente na luluganan
Kustomer: German Tier 1 ya managgaway elektroniko ed luluganan
Deskripsion na Kagawaan:
1.Precision Multi-Station Design – Ipapasen so panagtusok, panagyuko, tan panagporma ed sakey a pantutumbokan, pian naseguro so inkasusto na sukat (±0.02mm) tan atagey-peles na produksyon (60+ strokes/min).
2.Hardened Tool Steel Components – Manguusar na SKD11/CF-H40S ya materyales parad saray suntok tan die, ya mamaaligwas ed resistensya na pakasulong tan bilay (5M+ cycles).
3.Guided Ejection System – Saray spring-loaded strippers tan guide pins et mangaamper ed panpeket na materyales, ya manggagarantiya na maabig ya ibulos na parte tan nabawasan so downtime.
4.Modular Insert Technology – Saray interchangeable inserts et makatulong pian maples so mold adjustments parad nanduruman HDMI shell specifications, ya mamapawala na 70% ya panaon na pananguman.
5.Finite Element-Optimized Structure – Say pinabiskeg ya die plates tan balansin panagbunog na karga et mamalemew ed deflection, ya mamaseguro na inkapekder parad ultra-thin shell fabrication (0.2mm ya kapal).
● 12-istasyon ya progresibo ya desinyo na die (pantusok → panporma → pan-trim → pan-inspeksyon)
● In-die sensing technology monitors:
○ Pandurumaan na puersa na panagsuntok (±1.5 ton)
○ Strip feed accuracy (<0.003mm)
Manunan Performance:
○ Nadampot so CPK ya mas baleg nen say 1.67 (3-batch validation)
○ Yield rate 99.95%
○ Kapasidad: 500K pcs/bulan

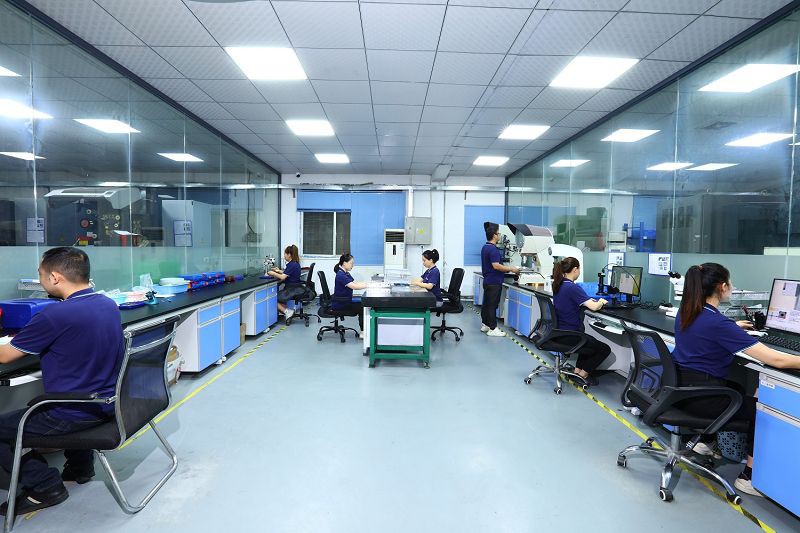

De-kalidad - Kagawaan ed Pansukat/Subok parad Dakel a Produksyon

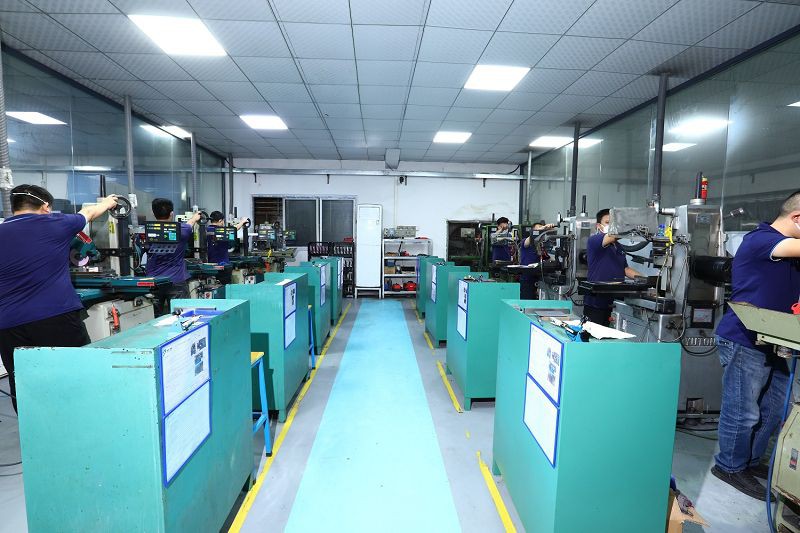

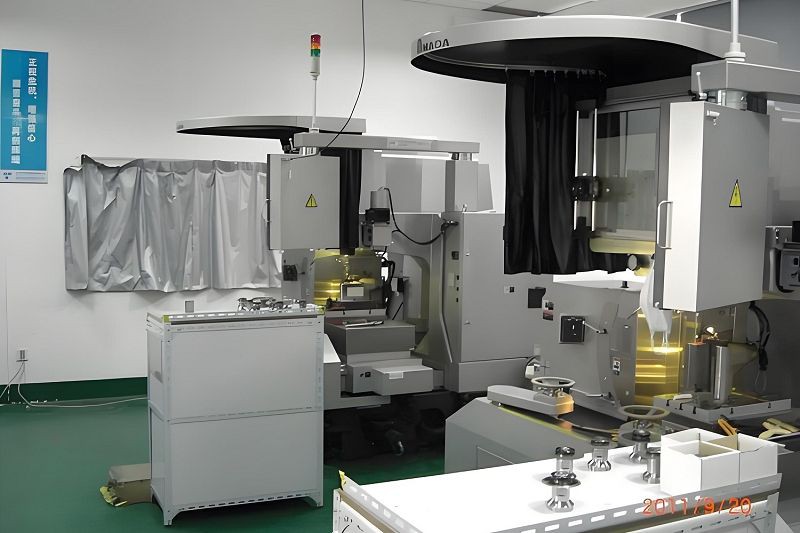

Precision Stamping Area
Akin et Mipartner ed Sikami?
End-to-End Service
Mangiiter kami na solusyon manlapud panagpaalagey na kagawaan anggad serbisyo na dakel a produksyon.
01
Kagawaan ya Atagey so Kaeksakto
Walaan kami na atagey a klase na kagawaan ed panagmakina pian nagawa so atagey ya inkasusto, sankaabigan a kalidad, tan inmapanmatalkan legan na panaggawa na saray kagawaan tan ekstran parte.
02
Professional Engineering Team
Say engineering team mi et tugyopen na 30+propesyonal ya inhenyero ya walaan na masulok ya 15 taon ya eksperiensya tan 200+ eksperiensyadon teknisyan.
03
Sistematikon Kalidad na Seguro
Walaan kami na saray advanced inspection Equipment pian naseguro so inkasusto na panagsukat na saray parte ya malet so tolerance.
04
Kompetisyon ed Gastos
Pian nadampot so Win-Win ya kooperasyon ed kustomer, mangiiter kami na kompetitibon presyo ya anggapoy kompromiso ed kalidad tan serbisyo na produkto, manisia kamin makapangiter kami na balor ed kustomer mi.
05
Akaparaan kan pantongtongan iray kakaukolanen ed saray parte na panag-stamp na eksakto?
Kontakin kami natan paraddetalyadon panagsukimat ed DFM tan sakey a kompetisyon a kotasyon. I-share mo ray 2D/3D ya drowing mo, tan ipanengneng na engineering team mi no panon min nadagdag so balor na proyekto mo.
